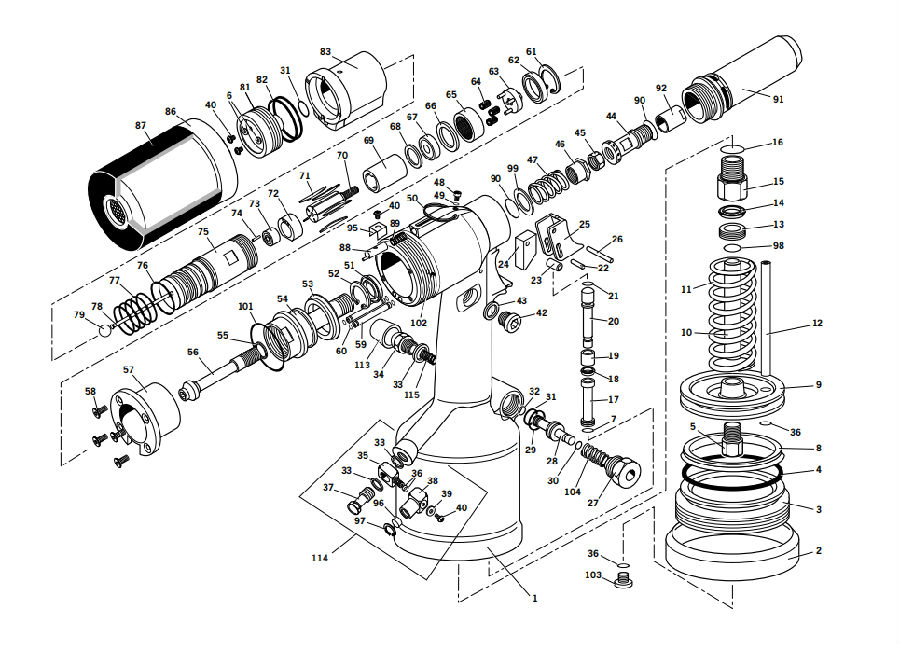

AVDEL气动铆钉枪NG4配件表
2021-04-23
| 序号 | 配件编号 | 序号 | 配件编号 | 序号 | 配件编号 | 序号 | 配件编号 |
| 1 | 71230-02041 | 27 | 71213-02022 | 53 | 71210-02031 | 79 | 71221-20104 |
| 2 | 07003-00333 | 28 | 07003-00416 | 54 | 80 | 07002-00098 | |
| 3 | 29 | 71221-02006 | 55 | 81 | |||
| 4 | 07003-00127 | 30 | 71223-02001 | 56 | 71221-02004 | 82 | |
| 5 | 07003-00189 | 31 | 71221-02002 | 57 | 71231-03210 | 83 | |
| 6 | 07003-00194 | 32 | 71213-03000 | 58 | 71233-03300 | 84 | |
| 7 | 07003-00271 | 33 | 71213-02008 | 59 | 71210-03400 | 85 | |
| 8 | 07003-00273 | 34 | 71210-02009 | 60 | 86 | ||
| 9 | 07003-00374 | 35 | 71233-02025 | 61 | 71230-03600 | 87 |
| 10 | 36 | 71233-02121 | 62 | 71210-03700 | 88 | 07001-00677 | |
| 11 | 07003-00341 | 37 | 71221-02008 | 63 | 71230-03800 | 89 | |
| 12 | 07003-00277 | 38 | 71213-02012 | 64 | 71213-02013 | 90 | 07003-00274 |
| 13 | 07003-00278 | 39 | 71210-02014 | 65 | 71221-02014 | 91 | 07490-03002 |
| 14 | 07003-00281 | 40 | 71230-02015 | 66 | 07003-00027 | 92 | |
| 15 | 07003-00204 | 41 | 71210-02101 | 67 | 07002-00108 | 93 | |
| 16 | 07003-00287 | 42 | 71230-02102 | 68 | 94 | ||
| 17 | 07003-00288 | 43 | 71230-02019 | 69 | 95 | ||
| 18 | 07003-00342 | 44 | 71213-02010 | 70 | 96 | 07003-00268 | |
| 19 | 07003-00310 | 45 | 71210-02022 | 71 | 71221-20105 | 97 | 07003-00398 |
| 20 | 07003-00415 | 46 | 71210-02024 | 72 | 71221-20101 | 98 | 07003-00042 |
| 21 | 07005-00088 | 47 | 73 | 71221-20103 | 99 | 71210-03401 | |
| 22 | 07005-01274 | 48 | 71221-02007 | 74 | 71221-20102 | 100 | 07007-01503 |
| 23 | 07008-00010 | 49 | 71233-02027 | 75 | 07003-00182 | 101 | |
| 24 | 07007-00224 | 50 | 71213-02028 | 76 | 07002-00163 | 102 | |
| 25 | 71213-03800 | 51 | 71230-03205 | 77 | 07007-01993 | 103 | 07900-00844 |
| 26 | 71233-02021 | 52 | 71210-02104 | 78 | 104 | 71213-03900 |
